Industrial Air Tank Compressed Air Reservoir Tank

Industrial Air Tank Compressed Air Reservoir Tank
air tank
air tank
air tank
air tank
air tank

Industrial Air Tank Compressed Air Reservoir Tank

Air tank is used in various industries with powerful functions. It’s widely used in power generation,petrochemical, printing and dyeing,metallurgy,textile,cement,construction and other industries.
  • Please select a specification and then click the button to send an inquiry.
Product Catagory

Industrial Air Tank Compressed Air Reservoir Tank

air-tank

Product Name Stainless steel air tank
Volume 300-6000L; 0.3-6m³
Pressure 8-16 bar
Applicable Industrial Air compressor
Medium air, steam, nitrogen, oxygen, water
Air Inlet Temperature ≤60℃
Service Life 10-15 years

air tank

Industrial Air Tank Compressed Air Reservoir Tank

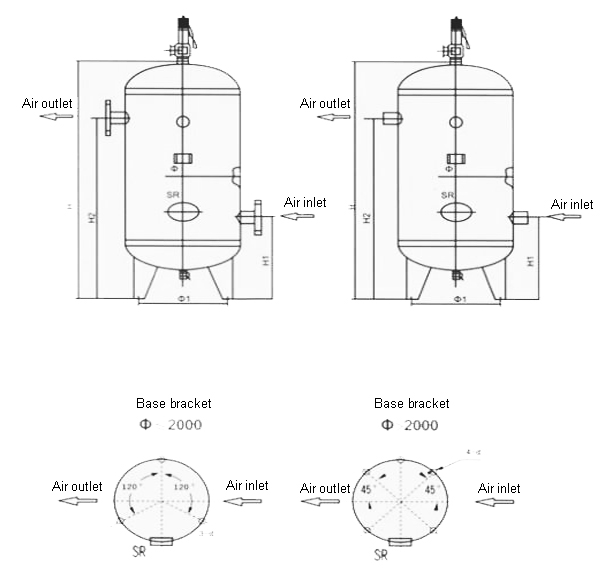

Model Capacity (L) Pressure (bar) Height (mm) Inner diameter (mm)
0.3/0.8 300 8 1594 550
0.3/1.0 300 10 1594 550
0.3/1.3 300 13 1598 550
0.3/1.6 300 16 1598 550
0.6/0.8 600 8 1905 700
0.6/1.0 600 10 1907 700
0.6/1.3 600 13 1909 700
0.6/1.6 600 16 1909 700
0.6/3.0 600 30 1945 700
1.0/0.8 1000 8 2325 800
1.0/1.0 1000 10 2327 800
1.0/1.3 1000 13 2331 800
1.0/1.6 1000 16 2327 800
1.5/0.8 1500 8 2562 900
1.5/1.0 1500 10 2564 900
1.5/1.3 1500 13 2562 900
1.5/1.6 1500 16 2566 900
2.0/0.8 2000 8 2782 1000
2.0/1.0 2000 10 2786 1000
2.0/1.3 2000 13 2782 1000
2.0/1.6 2000 16 2786 1000
3.0/0.8 3000 8 2944 1200
3.0/1.0 3000 10 2942 1200
3.0/1.3 3000 13 2946 1200
3.0/1.6 3000 16 2946 1200
3.0/3.0 3000 30 3038 1200
4.0/0.8 4000 8 3032 1400
4.0/1.3 4000 13 3036 1400
5.0/0.8 5000 8 3702 1400
5.0/1.0 5000 10 3702 1400
6.0/0.8 6000 8 4332 1400
6.0/1.0 6000 10 4332 1400
6.0/1.3 6000 13 4332 1400
