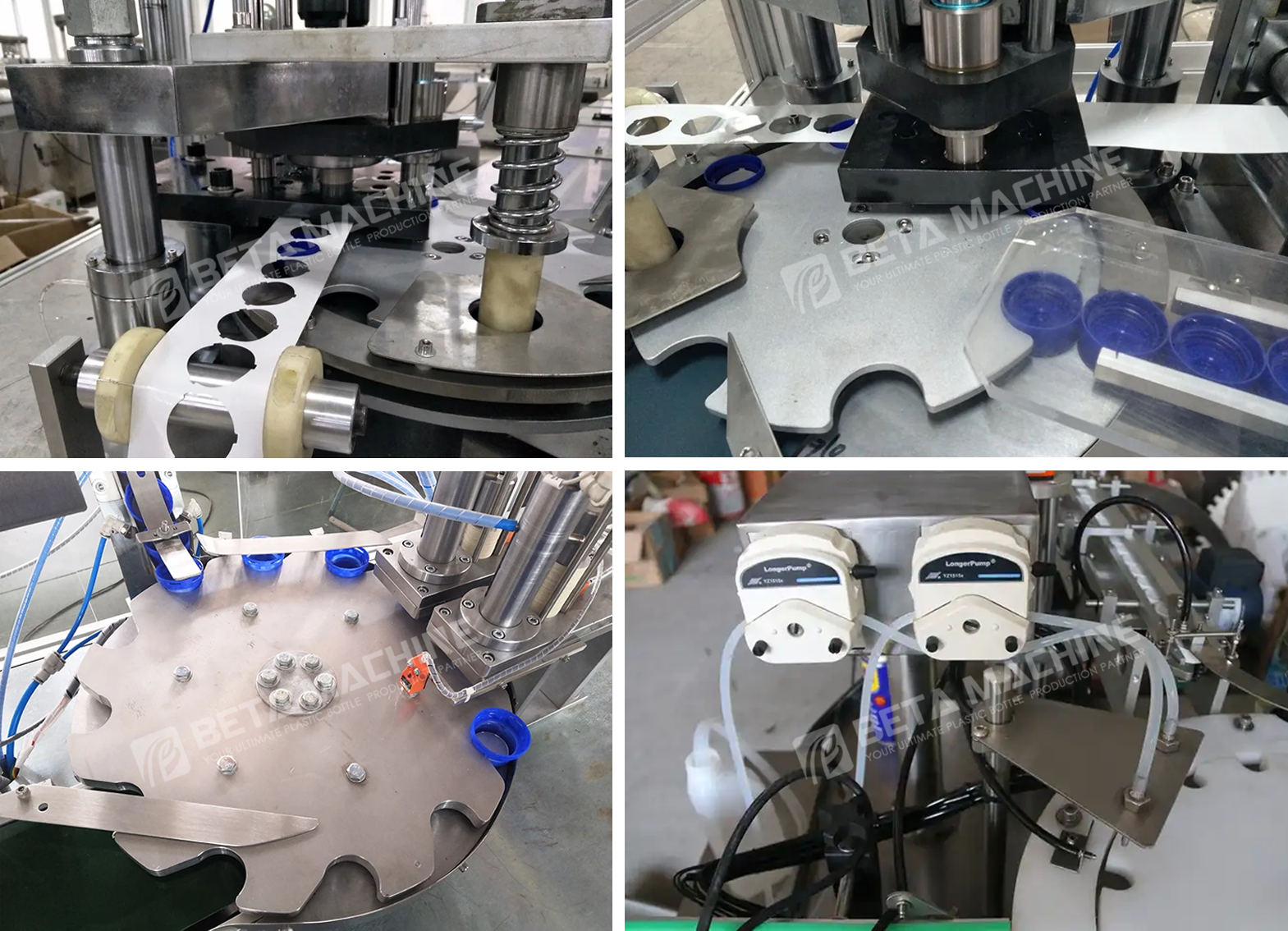

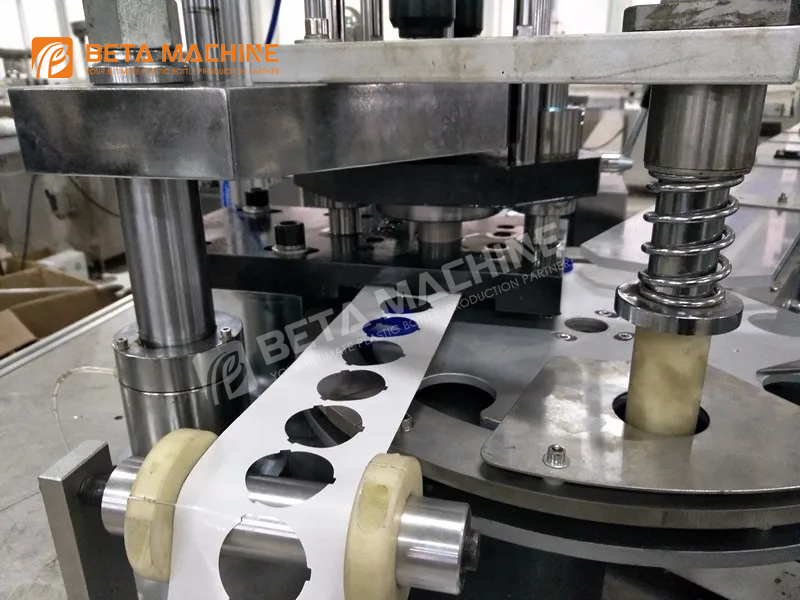

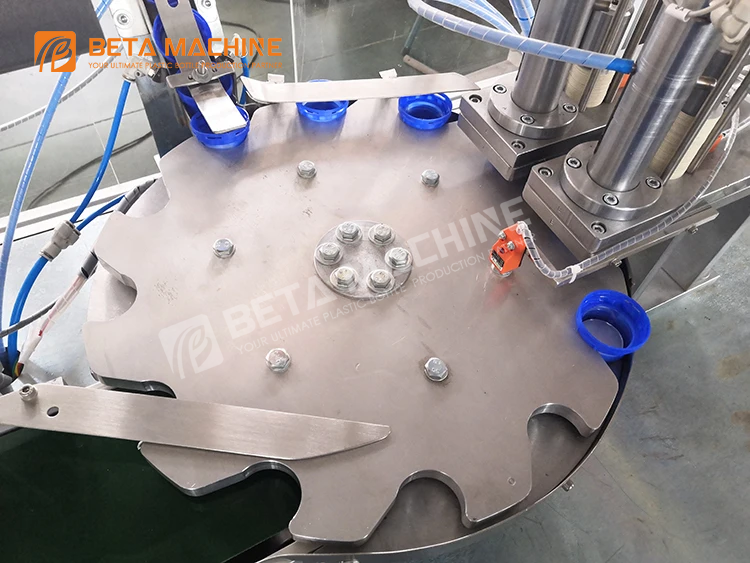

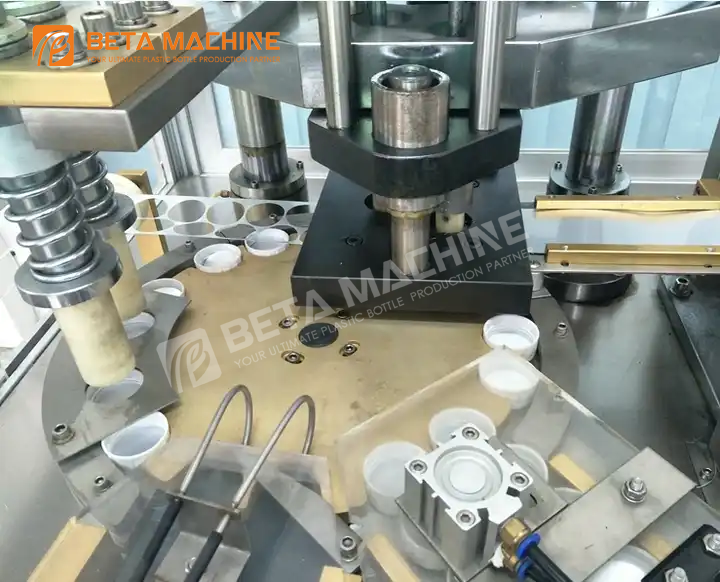

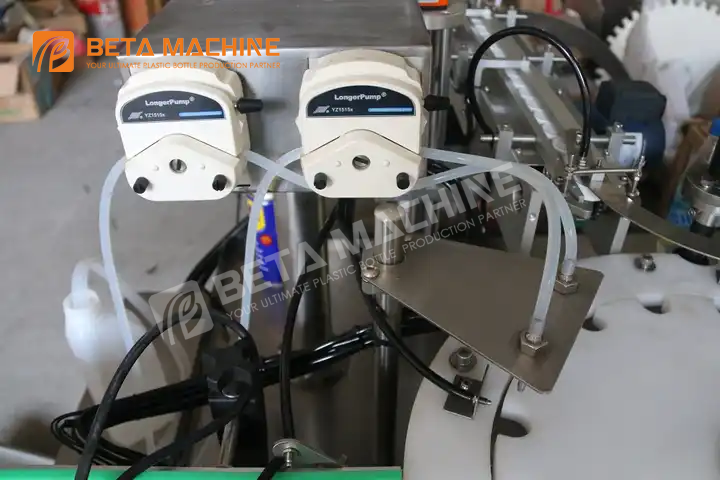

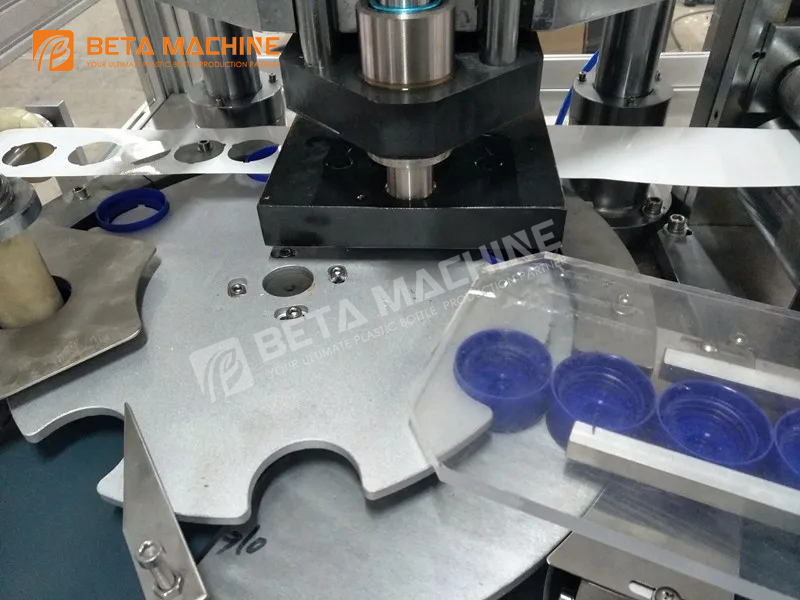

Automatic Plastic Cap Lining Machine Aluminium Foil Wad Inserting Machine

Automatic Plastic Cap Lining Machine Aluminium Foil Wad Inserting Machine

Cap lining machine is mainly used for making inner mats for aluminum lids and plastic lids,because the liner is softer than the lid,molded and pressed it into lids by high temperature,better stick to the bottle,to ensure a high carbonation degree of the drink,the liner solves the problems of water and gas leakage,extend the guarantee time,is accords with the national standard of food sanitation.

Automatic Plastic Cap Lining Machine Aluminium Foil Wad Inserting Machine

Cap lining machine is mainly used for making inner mats for aluminum lids and plastic lids,because the liner is softer than the lid,molded and pressed it into lids by high temperature,better stick to the bottle,to ensure a high carbonation degree of the drink,the liner solves the problems of water and gas leakage,extend the guarantee time,is accords with the national standard of food sanitation.

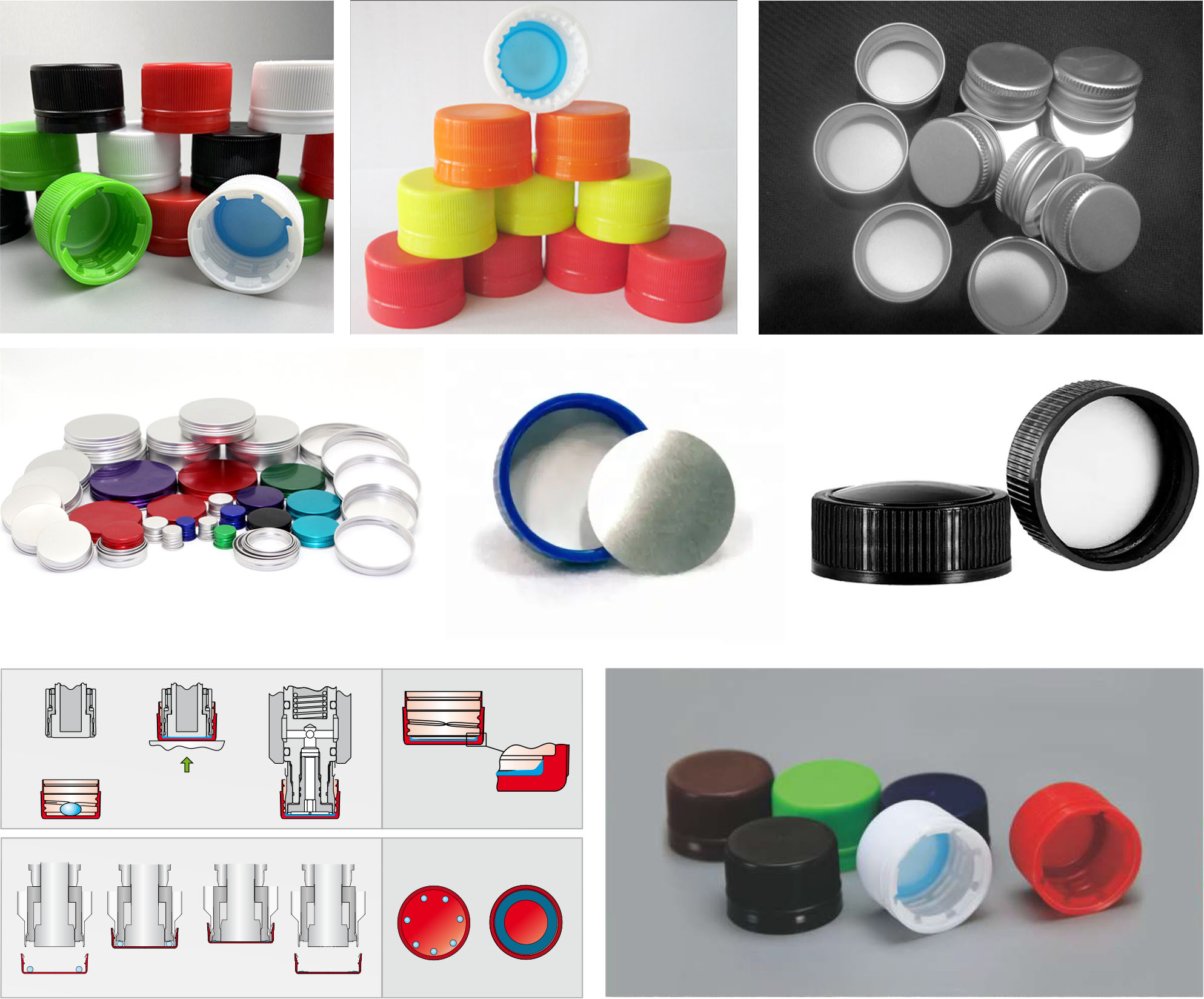

Applied Range

Automatic Plastic Cap Lining Machine Aluminium Foil Wad Inserting Machine

Type SD-280A-1(Normal) SD-280A-2(Normal) SD-280A-1(Water Cooling) SD-280A-3(Normal) SD-280A-1(Water Cooling)
Raw Materials TPE/EVA TPE/EVA TPE/EVA TPE/EVA TPE/EVA
Capacity(pcs/hr) 10000-12000 15000-20000 25000-28000 15000-18000 18000-20000
Diameter 22-30mm 22-30mm 22-30mm 30-42mm 30-42mm
Height 10-22mm 10-22mm 10-22mm 10-22mm 10-22mm
Pad Weight 0.3-0.4g 0.3-0.4g 0.3-0.4g 1.2-1.4g 1.2-1.4g
Mold Number 20 cavity 36 cavity 36 cavity 28 cavity 28 cavity
Actual Power Consumption 7-9KW 8-10KW 8-10KW 8-10KW 8-10KW
Air Compressor 0.8 mpa; 0.8m³ 0.8 mpa; 0.8m³ 0.8 mpa; 0.8m³ 0.8 mpa; 0.8m³ 0.8 mpa; 0.8m³
Voltage 220v/380v  50-60hz 220v/380v  50-60hz 220v/380v  50-60hz 220v/380v  50-60hz 220v/380v  50-60hz
Weight 1600kg 2000kg 2200kg 2000kg 2200kg
Dimensions(L*W*H) 3150*1100*15

00mm

4100*1400*15

00mm

4100*1400*1500mm 4100*1400*1500mm 4100*1400*1500mm
Type SD-280B-1(Water Cooling) SD-280B-2(Water Cooling)
Raw Materials TPE/EVA TPE/EVA
Capacity(pcs/hr) 25000-28000 18000-20000
Diameter 22-30mm 30-42mm
Height 10-22mm 10-22mm
Pad Weight 0.3-0.4g 1.2-1.4g
Mold Number 36 cavity 28 cavity
Actual Power Consumption 8-10kw 8-10kw
Air Compressor 0.8 mpa; 0.8m³ 0.8 mpa; 0.8m³
Voltage 220v/380v  50-60hz 220v/380v  50-60hz
Weight 2000kg 2000kg
Dimensions(L*W*H) 4100*1400*1500mm 4100*1400*1500mm
