Automatic One-Step Three Position Injection Blow Hollow Molding Machine PE PP Small Bottle Making Machine

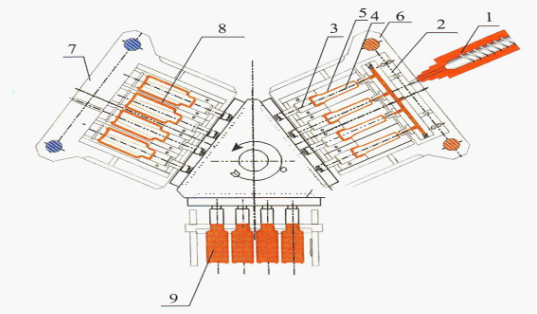

EQUIPMENT PRODUCTIVE FLOW SHEET
This machine adopts European injection blowing technology and domestic injection blow advantages.
Advantages:
1. Down-setting the clamping cylinder ensures the product clean.The mold chucking force is kept balance and uniform.
2. Decreasing the machine height ensures the easy operation of settling molds.
3. Particular hydraulic servo system and reasonable layout of the pipeline keep the machine running high efficiency and energy-saving.
4. Particular pressure clamping structure increases the clamping force and reduces the energy consumption of system.
5. Servo rotation system or high precision indexing device highly increases the rotation precision and reduces the dry cycle time.
6. Special double cylinder horizontal valve plate superimposed injection system not only makes the injection and storage smoother and faster, but also make it with good appearance. Particular plastic components meet the multi-level injection and pressurized requirement for different products.
7. Optimized internal rack layout keeps the maintenance more convenient.
8.De-molding is adopted with digital sensor detection and added with mandrel rotary detection function, which realizes the goal of full automatic operation.
9.Adopt the function of air pressure detection. When the blowing pressure below the set pressure, the equipment alarm and stop automatic, to reduce the rejection rate in the process of automatic production.
10.Adopt the function of cooling water pressure and temperature detection, when the cooling water pressure and temperature abnormal, the equipment alarm and stop automatic, to reduce the rejection rate in the process of automatic production.
11.Adopt the function of auxiliary alarm and host communication, when the host detect auxiliary police, it stop automatic.
12. Optional air-conditioned function for mandrel shortens the cooling cycle time to prevent the mandrel and material from sticking together.
13.The converyor belt backed can be connected with the visual inspection equipment, to detect the bottle body foreign, the material shortage, the irregularity, etc…to realize automatic operation.
14.The conveyor belt can be connected with the Visual Inspection, Leakage Tester and Labeling equipment, etc…
This process is ideal for producing large quantities of small plastic refined containers ranging from 5ml to 1L, as well as wide mouth containers used for cosmetics, daily necessities, medicine, and food packaging bottles.
